Water Essentials

A yacht's drinking water is not a single product. It is a chain of sources, transfers, equipment, tanks and outlets. Every handover creates a potential control point.

TECHNICAL ILLUSTRATION01 / 06

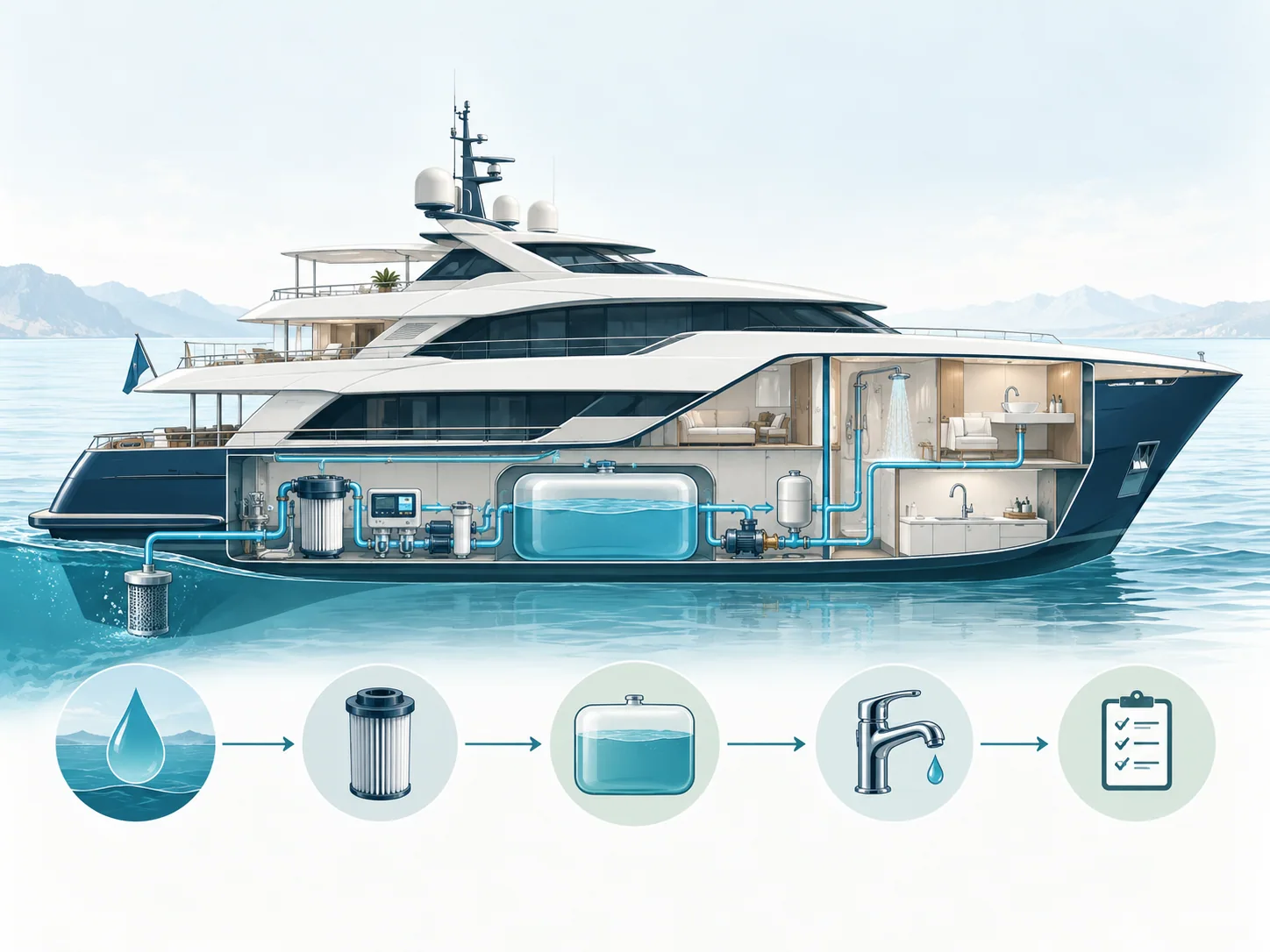

Simplified teaching schematic. Follow the configuration, risk assessment and approved procedures for your own vessel.

1.1 Source to tap: map the actual system

Water may arrive through shore bunkering or be made onboard from seawater using reverse osmosis. The two sources may have very different mineral content, treatment history and microbiological risks. A watermaker product-water meter tells you something about dissolved salts; it does not verify the hygienic condition of the storage tank downstream.

1. Source: shore supply or watermaker permeate. Check the source's assurance and any operational records.
2. Transfer: hose, bunkering point, valves and backflow protection. Dirty caps or fittings can defeat an otherwise safe supply.
3. Storage: tanks, vents, inspection covers and water age. Tank materials and access arrangements affect hygiene.
4. Treatment: filtration, disinfection, conditioning and post-treatment installed in the actual order shown on the vessel drawing.
5. Distribution: pumps, calorifiers, return loops, branches, mixers and outlets. Temperature and low-use branches matter.

1.2 Hazard versus control

A hazard is something that can cause harm, such as microbial contamination, chemical contamination or a cross-connection. A control measure is an action or engineering feature that reduces the risk: a protected hose, a verified sampling program, a suitable backflow device or a documented maintenance procedure. A Water Safety Plan identifies both and specifies what to do when a control fails.

1.3 Roles aboard

The master retains overall shipboard authority; the chief engineer typically manages technical systems; deck and interior teams may handle shore connections and report guest complaints. The responsibilities must be written down, including who can stop bunkering, isolate water and inform the master.

1.4 The two supplies need different verification

Shore water has already passed through an external supplier's system, but the yacht must still control the interface: hose material, coupling hygiene, backflow prevention, receiving tank selection and traceable transfer records. The crew cannot simply assume a port authority's declaration covers the yacht's internal pipework.

A seawater reverse-osmosis (SWRO) plant reduces dissolved salts through a pressure-driven membrane process. Its product is often low in minerals and may require downstream conditioning for taste, corrosion compatibility or process requirements. Its conductivity monitor offers valuable operational evidence, but does not demonstrate that a storage tank or distant shower is microbiologically safe.

1.5 Treat each asset as a possible control point

• Tanks: record material, geometry, access cover, vent protection, inlet/outlet locations, cleaning history and water age.
• Filters: understand whether the purpose is sediment removal, adsorption, softening or another treatment. A filter is not automatically a disinfectant.
• Disinfection: know the chemical or process, monitoring method, validated operating range and points that can lose effective treatment.
• Hot-water systems: understand storage temperatures, circulation, mixing and the possibility of uneven conditions in guest cabins.
• Outlets: know which fixtures are rarely used, which are exposed to guests and which can form aerosols.

1.6 Put a control next to every hazard

For a useful Water Safety Plan, each identified hazard requires evidence of the installed control measure, an assigned owner, a monitoring method, an appropriate action trigger and an agreed response. For example, a compromised tank vent requires an inspection and repair process; merely recording a low TDS reading does not address it. Avoid copying universal limits from another vessel: the applicable requirements and design may differ.

Field instruments are useful only when crew understand what each number measures — and what it cannot prove.

TECHNICAL ILLUSTRATION02 / 06

Simplified teaching schematic. Follow the configuration, risk assessment and approved procedures for your own vessel.

2.1 pH, conductivity and TDS

pH expresses acidity/alkalinity on a logarithmic scale. It can influence material corrosion, scale formation and disinfectant performance. pH by itself is not a safety certificate. Electrical conductivity (EC) measures how well dissolved ions carry electricity, usually in µS/cm. A handheld TDS meter typically converts EC into an estimated mg/L value using an assumed factor; different meters may disagree on the same sample.

For reverse osmosis, a rising permeate conductivity trend may indicate membrane leakage, O-ring issues, blending or changes in operating conditions. Compare with the vessel's known baseline and verify the meter before concluding the membrane is faulty.

2.2 Hardness, alkalinity and corrosion

Hardness is primarily linked to dissolved calcium and magnesium. It is relevant to scaling and softener performance, not to whether bacteria are present. Hardness appears in multiple units; never record a hardness figure without its unit.

Alkalinity describes acid-neutralising capacity; it interacts with pH and calcium chemistry. Very low-mineral RO water can be aggressive to some materials depending on the full water chemistry and system design. Do not assume adding an arbitrary amount of minerals always corrects corrosion.

2.3 Turbidity, disinfectant and temperature

Turbidity indicates suspended particles and is commonly expressed in NTU. Clear water may still carry dissolved chemicals or microorganisms. Disinfectant residual readings depend on the specific chemical and test method; free chlorine, total chlorine and hydrogen peroxide are not interchangeable. Temperature is important for microbial risk management in cold- and hot-water circuits.

2.4 Good measurement practice

1. Use the correct meter and calibrated/verified range.
2. Allow the sample and probe to stabilise as instructed.
3. Record the location, date/time, unit and operator.
4. Compare with the vessel's agreed trigger values and past measurements.
5. Escalate unexpected results; confirm where necessary with an appropriate method.

2.4 Do not mix units or different test questions

The same value can mean something very different depending on the unit. Conductivity is normally recorded as microsiemens per centimetre (µS/cm), whereas a TDS pen may output an estimated concentration in mg/L. Hardness can be expressed as milligrams per litre as CaCO₃, German degrees (°dH), French degrees (°fH) or mmol/L. Always note the reporting convention and whether the measurement describes source, product, tank or outlet water.

2.5 Understanding softening and RO

A conventional sodium-cycle ion-exchange softener replaces hardness-forming calcium and magnesium ions with sodium ions. It reduces scale-forming hardness but does not normally remove total dissolved ions. Thus, a softener is not interchangeable with an RO system. Reverse osmosis reduces many dissolved ions, but its performance depends on membrane selection, operation and correct system design; it does not automatically fix downstream distribution hygiene.

2.6 Distinguish values, limits and trends

A trend limit might be configured for early maintenance (for example, increasing watermaker product conductivity relative to commissioning). A regulatory limit may exist for a different health or quality parameter. A vessel's operating target may be even tighter than a general guideline to protect equipment. Label each correctly; a maintenance trigger is not necessarily a health limit.

Microbiological risks often develop in places that look clean from the outside. Management depends on system design, use patterns and verified controls.

TECHNICAL ILLUSTRATION03 / 06

Simplified teaching schematic. Follow the configuration, risk assessment and approved procedures for your own vessel.

3.1 How microorganisms reach the system

Potential routes include unsafe source water, contaminated hoses, compromised tank covers or vents, poorly controlled maintenance, cross-connections and ingress during repairs. Some microorganisms multiply within systems when conditions permit. Not every positive environmental finding has the same health significance, and the appropriate response depends on the organism, test method and affected outlets.

3.2 Biofilm and stagnation

Biofilm is a community of microorganisms embedded in material attached to wet surfaces. Biofilm can make microbial control more challenging and can persist in places where the bulk water appears normal. Stagnation increases water age and can reduce the effectiveness of some residual disinfectants. Blind ends, seldom-used guest suites, disconnected equipment branches and poorly balanced circulation loops deserve particular attention.

3.3 Legionella and temperature

Legionella is particularly relevant where contaminated aerosols can be inhaled, including showers. Effective risk management considers temperatures, storage, circulation, scaling, biofilm, use patterns and maintenance. It is not sufficient to choose one generic water temperature for every yacht; follow the vessel-specific risk assessment and applicable flag-state guidance.

3.4 Monitoring is not the same as testing

Routine operational checks can indicate whether controls are functioning. Suitable laboratory testing provides different evidence. A field pH or TDS meter cannot rule out E. coli, coliform bacteria or Legionella. Sample selection must be risk-based, and laboratory methods must suit the question being asked.

3.5 Why aerosols change the risk assessment

Some waterborne pathogens are relevant not only when water is swallowed, but when contaminated droplets are inhaled. Showers and similar aerosol-producing outlets therefore need specific consideration in an onboard risk assessment. A sample from the tank outlet can miss localised colonisation or a badly controlled branch. The engineer should understand both systemic and local factors rather than depending on one convenient monitoring point.

3.6 What makes control fail?

• Age: infrequently renewed water may spend excessive time in tanks or branches.
• Temperature: poor temperature management can create conditions favouring microbial growth, depending on the system and organism.
• Biofilm and scale: deposits can interfere with some controls and provide habitats for microorganisms.
• Hydraulics: dead ends, poorly balanced circulation and rarely used cabins can create local problems.
• Maintenance: poorly controlled interventions can introduce contamination or change flow patterns.

3.7 Build verification into maintenance

Routine flushing, disinfection, hot-water management, cleaning and microbiological testing should be selected and documented through a vessel-specific Water Safety Plan. There is no universal single schedule that fits every yacht. An appropriate plan names an owner, a procedure, a verification step and an escalation route. Sanitisation measures should only be applied where technically compatible with equipment and materials and in accordance with valid procedures.

When a microbiological result is unsatisfactory, do not jump directly to whole-system chemical dosing. Consider sample validity, distribution extent, immediate precautions, root-cause assessment, engineering controls and confirmatory testing after appropriate corrective action.

Safe bunkering starts before opening the valve. A single compromised hose or cross-connection can expose the complete onboard supply.

TECHNICAL ILLUSTRATION04 / 06

Simplified teaching schematic. Follow the configuration, risk assessment and approved procedures for your own vessel.

4.1 Before transfer: source verification

Confirm the water supplier, location and any available current quality information. Check the vessel's intended destination tanks and whether the receiving system is ready. Review the water bunkering procedure, required sampling and any prior issues with the port. Unknown quality or serious concerns call for a hold and escalation — not an improvised chemical correction.

4.2 The hygienic connection

1. Use a dedicated, clearly identified potable-water hose and suitable fittings.
2. Keep hose ends capped and protected during storage.
3. Inspect the hose for dirt, damage and unsuitable repairs.
4. Confirm appropriate backflow protection and prevent cross-connections.
5. Connect hygienically and follow the yacht's flushing and sampling protocol.
6. Check transfer flow, tank level and unexpected pressure behaviour while bunkering.

4.3 What to log

4.4 When to stop

Examples include an obviously contaminated connection, contradictory supplier information, an unprotected cross-connection, unusual appearance or unexplained abnormal measurements. Follow the Water Safety Plan. Record who authorised the stop and what is required before resuming.

4.5 Follow a stop/verify/accept sequence

A practical procedure has three decision points. Before connection: evaluate the supplier, expected characteristics, sampling needs and suitability of transfer equipment. Before transfer: confirm sanitary connections, cross-connection protection, planned receiving tank, crew roles and any local risk factors. During transfer: watch for unexpected pressure, colour, odour, leakage or conflict between observations and the approved acceptance criteria.

When information is incomplete, do not substitute visual clarity or one simple TDS reading for source assurance. Pause and involve the responsible engineer or master. Any restart should be authorised and documented under the vessel's procedure.

4.6 How contamination can happen despite good source water

Ports may have a treated supply, yet contamination can be introduced through an incorrectly stored hose, an unclean coupling, inappropriate materials, stagnant hose water or an unsuitable shared connection. A missing backflow protection arrangement can also create an avoidable risk to interconnected systems. Treat hose storage, labelled equipment and fittings as part of the water safety system, not as ordinary deck housekeeping.

4.7 The bunkering record should support an investigation

Imagine two tanks are filled at different ports and one branch later develops an unusual odour. If the bunkering log includes the source, receiving tank, time, quantity, operator and measurements with units, the engineer can narrow the possible causes. If the log simply says 'water loaded', tracing becomes much harder.

Measurements become useful information only when their sampling point, method and context are recorded. Repeatable procedures make trends reliable.

TECHNICAL ILLUSTRATION05 / 06

Simplified teaching schematic. Follow the configuration, risk assessment and approved procedures for your own vessel.

5.1 Design the sampling map

Sampling locations should represent the key points in the water chain: bunkered source water where practicable, watermaker product, tank outlet, downstream of treatment and selected remote outlets. Not all vessels need identical sampling frequency. Choose points and frequency based on system configuration, identified hazards, operating profile and any applicable regulations.

5.2 Field readings and laboratory samples

Field readings may include conductivity, pH, temperature and relevant disinfectant residuals. Microbiological and specialist chemical analyses require suitable equipment, validated methods and competent laboratories. For lab samples, request instructions before sampling: the right sterile bottle, preservatives, transport temperature, maximum holding time and chain of custody vary with test and laboratory.

5.3 Document every reading

5.4 Baseline, trend and action thresholds

A single number without a baseline may mislead. Establish expected operating ranges for the vessel, documenting why they are appropriate. Distinguish operational targets from regulatory or health-based limits. Changes in conductivity after a new watermaker membrane, or changes in disinfectant residual after a large bunkering, may be informative even when no single value gives a definitive diagnosis.

5.5 A sampling plan answers a specific question

Samples should not be chosen only because a particular tap is convenient. A source sample may evaluate incoming water; a tank outlet sample represents storage and turnover conditions; a post-treatment sample may evaluate a device; and a remote outlet may highlight local distribution problems. If a problem is confined to one cabin, comparing hot/cold and near/far locations may be more useful than taking several samples from the same central point.

5.6 Laboratory chain of custody

Before sampling, confirm which tests are required and the receiving laboratory's method. For microbiological sampling, bottle type, disinfectant neutraliser, handling of outlet attachments, sample temperature and time to analysis can materially affect the result. The laboratory must give the specific instructions; the general rules from a training course must not replace them.

A useful chain-of-custody record includes: sample ID; sampler; collection date/time; exact location; tests requested; preservation; handover time; dispatch conditions; and laboratory receipt. Label vessels and samples clearly enough to prevent mix-ups.

5.7 Trend interpretation without overclaiming

A rising conductivity trend may reflect a source change, blending, sensor problems or membrane performance; it does not uniquely identify a failure. Similarly, one microbial result may reflect a local problem or a broader system issue. Interpret the data in context and document uncertainties. Use a defined investigation procedure instead of replacing confirmed evidence with assumptions.

An abnormal result is a signal to protect people, preserve evidence and investigate systematically — never to improvise a treatment dose.

TECHNICAL ILLUSTRATION06 / 06

Simplified teaching schematic. Follow the configuration, risk assessment and approved procedures for your own vessel.

6.1 The first five actions

1. Recognise: establish what changed — colour, smell, taste, instrument trend, flow or laboratory result.
2. Protect: follow the ship's approved response plan, including restricting affected uses and arranging a verified alternative supply where necessary.
3. Notify: inform the chief engineer and master; involve medical or public-health expertise as appropriate.
4. Investigate: trace the affected water pathway and recent bunkering, maintenance, chemical treatment and operational changes.
5. Verify: document corrective action and suitable evidence before returning affected water to use.

6.2 Diagnose by evidence, not assumption

Blue or green water may indicate interactions with copper-containing materials, but colour alone does not identify the cause. A chlorine odour does not prove adequate disinfection. A stable TDS meter does not rule out microorganisms. Record the symptoms, affected locations, time of onset, system schematic and any changed operating conditions.

6.3 Prioritise findings

These are training categories; actual urgency and thresholds belong in the vessel-specific plan.

6.4 Communicate and close the incident

Keep a concise record of the symptom, suspected exposure, decision-maker, actions taken, laboratory testing, user communication and formal return-to-service decision. Record unresolved uncertainty. For a guest-facing incident, technical staff should coordinate with the master and relevant departments rather than give conflicting instructions.

6.5 Scope the affected area before choosing a remedy

First establish whether the abnormality affects hot water, cold water, one outlet, one tank or the entire distribution network. Use confirmed operating records to check recent changes: bunkering, a watermaker service, use of a different source, a filter change, tank work, chemical dosing or repairs. The size of the affected area changes both the risk assessment and the appropriate troubleshooting strategy.

6.6 Separate a hypothesis from a diagnosis

Blue-green discolouration can be consistent with interactions involving copper-containing materials under certain conditions. It is not proof that copper is the cause. A reliable report distinguishes observation (visible colour), hypothesis (possible metal mobilisation or local plumbing effects), evidence needed (location comparison, materials review, suitable chemistry tests) and corrective action (chosen only after evaluation).

6.7 Avoid interventions that create a second incident

Increasing disinfectant concentration without understanding chemical compatibility, contact time, residual monitoring and material limits may cause additional problems. Likewise, replacing every filter or membrane is rarely a good first diagnostic step. Safety restrictions and specialist input may be necessary, especially where guest exposure or health concerns are possible.

6.8 Close the incident with evidence

A complete record should answer: What was observed? Which users or branches were affected? Who made the decision to restrict or restore use? What tests or inspections were performed? Which corrective actions were completed? What verification supports return to service? Which procedure will be changed to prevent recurrence?
